GRIDSURVEYING AND MAPPING LTD
Surveyors for Essex, London & the South East

Surveying for construction, earthworks and development.

Topographical surveys, drone mapping, earthworks measurement, setting out and machine-control models for construction and development projects.

Request a Quote Send Your Drawings
Services

Core surveying services

Survey, measurement and digital construction services for active projects.

Topographical survey with measured site levels

Topographical Surveys

Existing-site levels, features, 3D survey data, CAD and terrain surfaces to agreed scope.

View service →

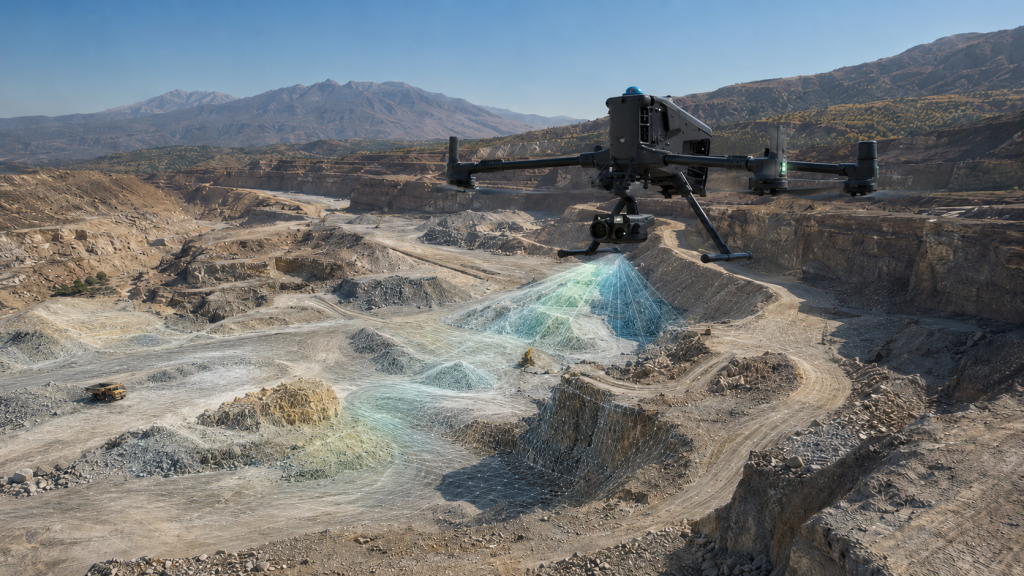

 Georeferenced aerial mapping from a drone survey

Drone Surveying & Mapping

Aerial mapping, terrain data, stockpiles, progress records and photogrammetric 3D outputs.

View service →
 Earthworks survey and cut fill surface comparison

Earthworks & Volume Surveys

Current surfaces, stockpiles, cut/fill, progress quantities and construction-layer records.

View service →
 3D formation model for GPS-guided earthmoving plant

Machine Control & 3D Models

Formation, excavation, road, platform and earthworks models for compatible GPS-guided plant.

View service →
Construction Setting Out Construction Progress Surveys As-Built & Verification Materials Management Plan Survey Support All services →
Selected work

Survey data and project outputs

Examples from topographical, earthworks and digital construction workflows.

Topographical survey and mapped site information
Topographical Surveys

Site levels and working survey data

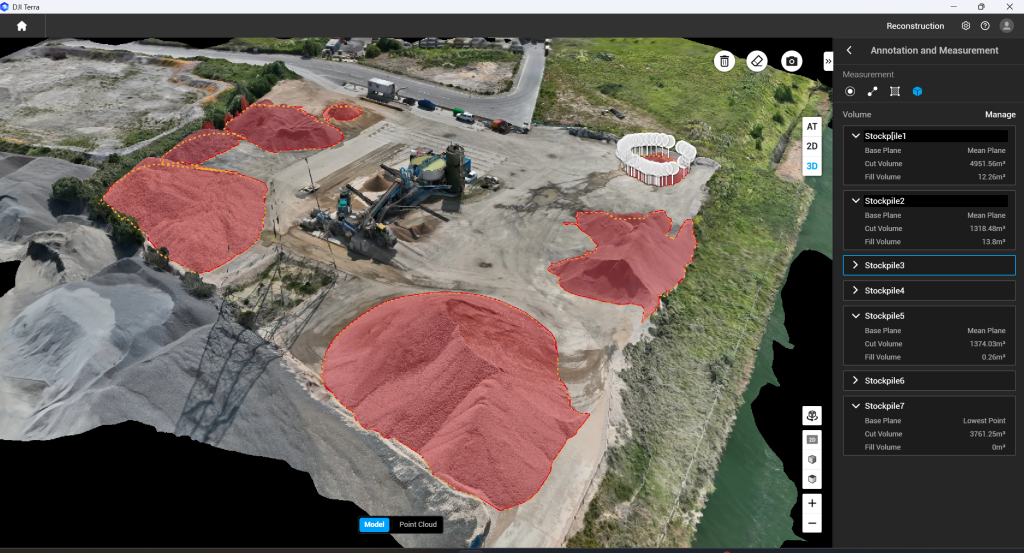

 Material tracking and survey quantity records
Earthworks & MMP Support

Stockpile measurement and material records

 Civil 3D formation surface used in machine-control modelling
Machine Control

Formation and construction models
View more survey examples →
Project enquiry

Discuss your survey requirement.

Send the site location, drawings, specification or a short description of the work required.

Request a Quote Call 07429 446769
